Astronomical Imaging With EMCCDs Using Long Exposures

Olivier Daiglea, Oleg Djazovskib, Jean Dupuisb, Rene Doyonc, and Étienne Artigauc

Author affiliations [+]

a Nuvu Cameras, Canada
b Canadian Space Agency, Canada
c Laboratoire d’Astrophysique Expérimentale, Département de physique, Université de Montréal, Canada

Abstract

Astronomical imaging is always limited by the detection system signal-to-noise ratio (S⁣N⁣R⁣). E⁣M⁣C⁣C⁣D⁣ cameras offer many advantages for low light applications, such as sub-electron read-out noise, and low d⁣a⁣r⁣k⁣ ⁣c⁣u⁣r⁣r⁣e⁣n⁣t⁣ with appropriate cooling. High frame rate achieved with these devices is often employed for the enhancement of S⁣N⁣R⁣ by acquiring and stacking multiple short exposures instead of one long exposure. E⁣M⁣C⁣C⁣D⁣s⁣ are also suitable for applications requiring very long exposures, even when only a few photons are detected per hour. During long exposure acquisitions with a conventional C⁣C⁣D⁣, slower pixel rates are usually employed to reduce the read-out noise, which dominates the C⁣C⁣D⁣ noise budget. For E⁣M⁣C⁣C⁣D⁣ cameras, this approach may not result in the lowest possible total noise and the effect of increasing the total exposure time may not yield the highest possible S⁣N⁣R⁣ for a given total integration time. In this paper, we present and discuss the experimental results obtained with an E⁣M⁣C⁣C⁣D⁣ camera that has been optimized for taking long exposures (from several seconds to several hours) of low light-level targets. These results helped to ascertain an E⁣M⁣C⁣C⁣D⁣ camera best operating parameters for long exposure astronomical imaging.

Article published during SPIE Astronomical Telescopes + Instrumentation, 2014, Montréal, Quebec, Canada

More information on Nüvü Camēras Space and Defense applications here

1. INTRODUCTION

Direct detection of exoplanets via coronagraphy is an increasingly important area of astronomical research. The advantages of a coronagraph operating at visible wavelengths include the possibility to measure key biomarkers O2, O3 and H2O as well as biologically important molecules CH4 and CO2 on early Earth analog.1 Additionally, an optical system optimized for visible spectral range observations would support the use of smaller telescopes rather than larger mid-IR telescopes to attain the required resolution. Better still, such system would operate at room temperature, thus eliminating the need for cryogenic cooling. Recently, several concepts for medium- or flagship-scale missions using coronagraphs have been investigated.2, 3 These studies have exposed the main technical difficulties of direct planet detection, namely the very high contrast between planets and their host stars as well as their small angular separation. Since it will be extremely challenging to reach the 10−9 contrast detection goal at 100 mas for wavelengths greater than 500 nm, photon-counting electron multiplying C⁣C⁣D⁣s⁣ (E⁣M⁣C⁣C⁣D⁣s⁣) having high quantum efficiency (Q⁣E⁣) in the visible and near-IR (0.4-1.1 µm) ranges with low d⁣a⁣r⁣k⁣ ⁣c⁣u⁣r⁣r⁣e⁣n⁣t⁣ and read noise have been identified as a critical component of any exoplanet direct imaging mission.2, 4 Furthermore, it has been theoretically demonstrated4 that even in the ideal case of noise-free performance detector, integration times may extend from 1 second to over 100 hours. However, data acquisition with a conventional C⁣C⁣D⁣ generally calls for slower pixel rates to reduce the read-out noise, the dominating C⁣C⁣D⁣ noise source. For E⁣M⁣C⁣C⁣D⁣ cameras, data may not achieve the lowest noise from this procedure, and increasing integration time will not yield the highest S⁣N⁣R⁣.

In our previous publications,5, 6 we have presented the many advantages of E⁣M⁣C⁣C⁣D⁣s⁣ for low light applications: subelectron read-out noise, low d⁣a⁣r⁣k⁣ ⁣c⁣u⁣r⁣r⁣e⁣n⁣t⁣ with appropriate cooling, and S⁣N⁣R⁣ enhancement by acquiring and stacking multiple exposures instead of one exposure due to the high frame rate achieved with these devices. In this paper, we report on a series of experiments designed to investigate the E⁣M⁣C⁣C⁣D⁣ potential for applications requiring very long exposures when only a few photons are detected per hour. The results obtained with integration times ranging from several seconds to several hours can be applied to optimize observation strategies for ground-based and spaceborne telescopes operating E⁣M⁣C⁣C⁣D⁣ low-light imaging cameras.

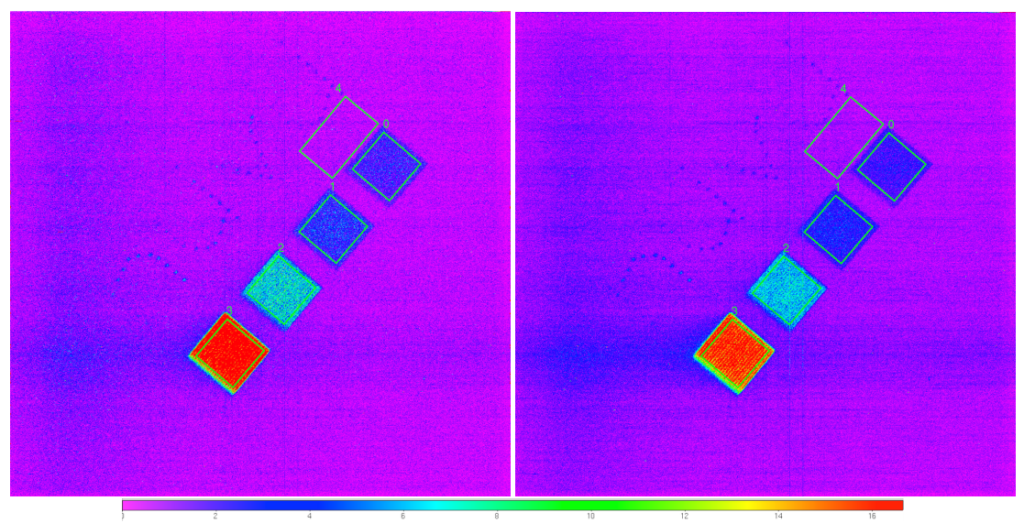

Figure 1. Image projected by the OLED display. These images represents the data gathered after 3 hours of integration with single exposures of 90 s at -95◦C after cosmic rays removal. The scale is in e¯/pixel/hour. In the right to left order, squares correspond to increasing photon flux while the empty rectangle (region 4) is used for dark measurements. Left: Data processed in AM. Right: Data processed in ⁣P⁣C⁣.

2. EXPERIMENTS

Measurements were performed at Nüvü Camēras with the EMN2 1k×1k E⁣M⁣C⁣C⁣D⁣ camera. The camera was the very first to use the third generation of C⁣C⁣C⁣P⁣ controller (CCCPv3) and incorporates a grade-1 CCD201-20 E⁣M⁣C⁣C⁣D⁣ from e2v Technologies. The camera’s LN2 cooling system was tuned to stabilize the chip’s temperature between −85 and −115C.

2.1 Experimental set-up

The experimental set-up consisted of an Organic Light Emitting Diode (OLED) RGB display (4D systems µOLED-128- G2-REV3) which was employed as a photon source inserted into a light-tight tube attached to the EMN2’s front plate. Connected to the camera was a Thorlabs MVL7000 C-Mount lens looking directly at the display. A ND-6 filter (Thorlabs NE2R60B) was placed in front of the lens to attenuate the light emitted by the display, and the lens aperture was set to f/16. As the pixels of the display do not provide a 100% fill factor, the lens was slightly put out of focus to blur the display’s pixels and provide a more uniform illumination.

The OLED display was oriented at a 40 degree angle relative to a horizontal plane. Only the display’s green pixels were used, and the light output of each pixel was characterized by measuring the dependence of photon flux as a function of pixel’s current in order to achieve the desired number of photons emitted per hour. The OLED display produced images at the focal plane consisting of 4 squares with different luminance levels (marked as 0, 1, 2, and 3) and the nüvü letters on top of each square (in reversed order) as well as a blank region (region 4 ü thereafter) for dark measurements. The letters consists of dots composed of a single pixel of the OLED display, and each pixel have the same mean illumination as its corresponding square. The squares’ mean illumination is summarized in Table 1.

Table 1. Measured flux in the regions of interest

2.2 Data acquisition and processing

Data were collected at temperatures of −85C, −95C, and −105C. 6 different exposure times per frame were used: 10 , 30 s, 90 s, 300 s, 900 s, and 1800 s. For every temperature and exposure time combination, a total of 3 hours of integration has been achieved. 200 bias frames (0 s integration) were also taken for every parameters combination.

The E⁣M⁣ ⁣g⁣a⁣i⁣n⁣ of the camera was set to yield an E⁣M⁣ ⁣g⁣a⁣i⁣n⁣ over readout noise ratio of 40, leading to an effective read-out noise of 0.025 e¯ and a p⁣h⁣o⁣t⁣o⁣n⁣ ⁣c⁣o⁣u⁣n⁣t⁣i⁣n⁣g⁣ efficiency of >85%. The camera was operated in Inverted Mode Operation (I⁣M⁣O⁣) at 10 MHz pixel rate to achieve the lowest level of total background signal (dark + C⁣I⁣C⁣).6 Figure 2 presents a series images obtained at various exposure times.

Data were processed by first computing a master bias image with the acquired bias frames. It was then subtracted from the data frames to yield an 0 ADU reference image. Next, the stack of images was cleaned from cosmic rays with a sigmaclipping algorithm. Pixels flagged as being hit by a cosmic ray were replaced by the median value of the corresponding pixels in the other frames of the stack. The resulting data frames were subsequently divided by the E⁣M⁣ ⁣g⁣a⁣i⁣n⁣, then summed to yield an image processed in analog mode (AM) where its values are expressed in electrons. The same data frames were also processed applying a threshold value equivalent to 5 times the readout noise (5×0.025 e¯), then summed to yield an image processed in p⁣h⁣o⁣t⁣o⁣n⁣ ⁣c⁣o⁣u⁣n⁣t⁣i⁣n⁣g⁣ mode (PC) where its values are also expressed in electrons. Figure 1 shows two resulting images of the same data being handled in AM and ⁣P⁣C⁣. This figure suggests that some of the background signal might consist of cosmic rays remnants, which explains the horizontal trails one can see in the unlit area of the images.

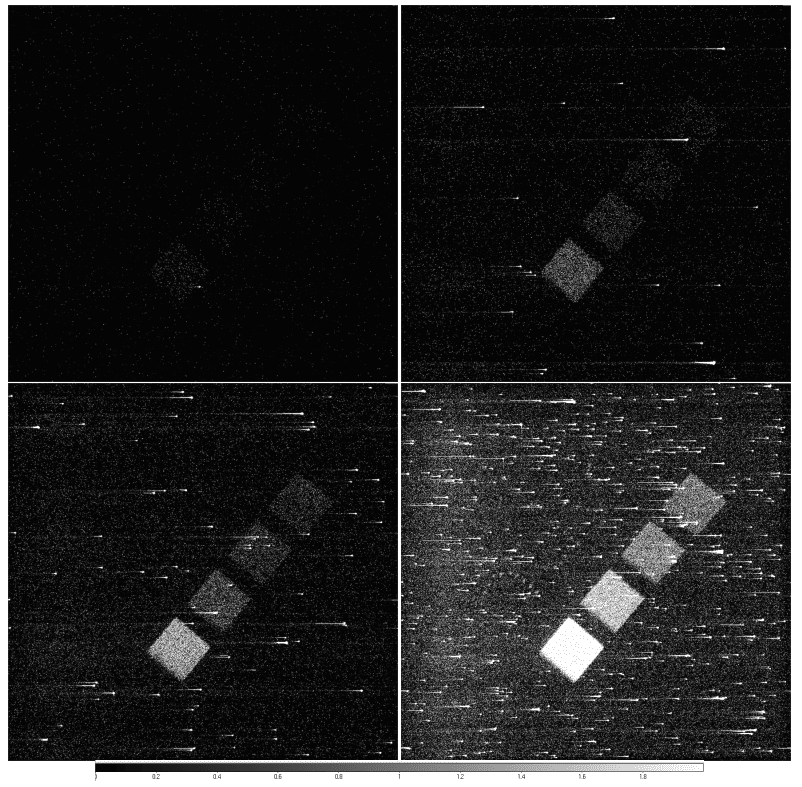

Figure 2. Results for a single exposure of: Top left: 10 s, Top right: 90 s, Bottom left: 300 s, Bottom right: 1800 s. All images were acquired at −95C and processed in AM mode. The scale is the same for all images and it is in e¯/pixel/image. This figure also reveals the growing impact of cosmic rays with increasing exposure times.

3. RESULTS

The processed data were analyzed to extract S⁣N⁣R⁣ and flux values from the signal regions outlined in Figure 1. The measured metrics were the total signal per pixel and the resulting S⁣N⁣R⁣. From these, we computed an efficiency parameter to compare the data at various exposure times as well as processing methods (AM or ⁣P⁣C⁣).

3.1 Mean signal per pixel

The mean signal per pixel was obtained by averaging the pixels’ values in the regions displayed in Figure 1, then subtracting the mean background signal. The left panel of Figure 3 presents the mean signal (background subtracted) measured in region 0 after 3 hours of integration as a function of the exposure time per frame. Data shows that the signal level is relatively stable, acquisition parameters notwithstanding. Even though such result was expected, it reveals the advantage of the E⁣M⁣C⁣C⁣D⁣ sub-electron read-out noise; the same total flux is measured in region 0 regardless of the flux per frame, which rises from 0.005 e¯/pixel/frame (10 s exposure time) to 1 e¯/pixel/frame (1800 s exposure time).

Figure 3 right panel presents the background signal for the same integration time. The declining background signal with increasing exposure time per frame is expected as less clock-induces charges (C⁣I⁣C⁣) are being accumulated in the final image. For temperatures below −95C, the background signal is less than 1 electron/pixel/hour for exposure of more than 30 seconds.

One striking evidence of Figure 3 is the similarity between the background signal for temperatures of −105C and −95C. We supposed that cosmic rays residues might be a non-negligible background component.

As flux is independent of the operating temperature and the background signal is similar at −95C and −105C, we chose to use the −95C data set results for the following analysis.

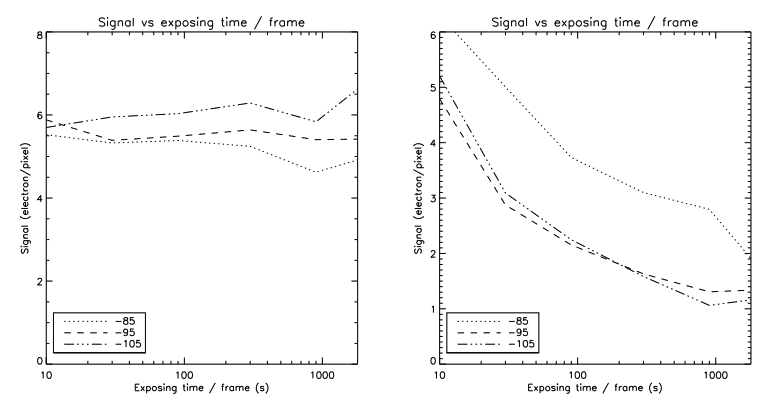

Figure 3. Measured signal after 3 hours of integration time with respect to exposure time per frame for the 3 E⁣M⁣C⁣C⁣D⁣ chip temperatures. Region numbers are given in Figure 1. Left: Background signal (d⁣a⁣r⁣k⁣ ⁣c⁣u⁣r⁣r⁣e⁣n⁣t⁣ + C⁣I⁣C⁣) for region 4. Right: Region 0 signal (dark-subtracted). This shows the relative stability of the experiment.

3.2 S⁣N⁣R⁣

The regions of interest’s SNRs are computed using the following equation:

S⁣N⁣R⁣ = S/σ , (1)

where S represents the mean signal (background subtracted), and σ is the standard deviation for the same region. Since all regions exhibit a diagonal pattern due to the OLED display fill factor, σ was calculated by processing the data for every acquisition parameters (temperature and exposure time) into two halves. The first half was subtracted from the second one and the standard deviation of the resulting image was determined for every region of interest. This operation increased σ by a factor of √ 2, while the use of only half of the data set will decrease the s⁣h⁣o⁣t⁣ ⁣n⁣o⁣i⁣s⁣e⁣ by a factor of √ 2. Hence, the computation of the standard deviation of the subtracted images directly provides σ. The corresponding SNRs are shown in Figure 4.

Figure 4 curves reveal the quick decrease of the S⁣N⁣R⁣ in ⁣P⁣C⁣ with growing flux intensities because of the ⁣P⁣C⁣ pixels saturation. The AM-processed data’s S⁣N⁣R⁣ remains relatively flat despite the change in exposure time. This point will be discussed later when comparing the efficiency parameters. However, all SNRs decrease for very long exposure time per frame, even in AM. One possible explanation is the improper removal of cosmic rays for these data sets. The very few images available (6 images for 1800 s) makes it hard for the sigma-clipping algorithm to distinguish between the tail left by a cosmic ray (see Figure 2) and the actual signal. These remnants artificially increase the variance, hence the observed decrease of the S⁣N⁣R⁣.

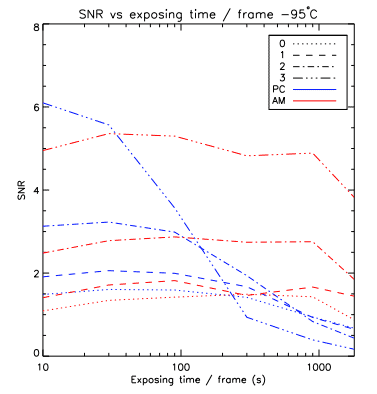

Figure 4. S⁣N⁣R⁣ computed for 3-hours integration for the 4 regions of interest as function of the exposure time per frame. The red curve shows the S⁣N⁣R⁣ for the data processed in AM, while the blue line represents the S⁣N⁣R⁣ for the data processed in ⁣P⁣C⁣.

3.3 Efficiency comparison

The efficiency is expressed as the square of the S⁣N⁣R⁣ ratio:

η = S⁣N⁣R⁣b/S⁣N⁣R⁣a 2 . (2)

η is the ratio of the total integration required to reach any given S⁣N⁣R⁣ when going from the acquisition parameters of a to the acquisition parameters of b. In the following analysis, the comparison point a is set as the 10 s of exposure per frame S⁣N⁣R⁣ data.

Figure 5 demonstrates the advantage of handling data in ⁣P⁣C⁣ rather than analog mode for the faintest fluxes. At low flux, PC data handling provides a 30–50% efficiency gain for exposure times of ≤90 s. For higher fluxes and/or longer exposure times per frame, the advantage of ⁣P⁣C⁣ over AM vanishes as ⁣P⁣C⁣ pixels begin to saturate. It must be emphasized that both ⁣P⁣C⁣ and AM processing were performed on the same data set, a decision being made after data acquisition. Hence, data handling can be adjusted as a function of the incoming flux to benefit from the best of the processing methods.

Figure 6 shows the efficiency comparison for the AM (left panel) and ⁣P⁣C⁣ (right panel) processing. S⁣N⁣R⁣ peaks at 300 s per frame in AM while achieving its highest value in ⁣P⁣C⁣ between 30 and 90 s (for the faintest region). For the brightest regions, in AM, the efficiency remains about the same exposure ≥30 s. These regions are dominated by the signal’s s⁣h⁣o⁣t⁣ ⁣n⁣o⁣i⁣s⁣e⁣ rather than background signal, thus the lack of efficiency increase with increasing exposures. As depicted in the previous section, η decreases for the very long exposure time per frame. Theoretically, there is no reason for such decline, except for the improper removal of cosmic rays.

One stunning conclusion one can draw from Figure 6 is the very little benefits brought by exposures greater than 30–90 s per frame, even for the faintest fluxes. In fact, there are disadvantages:
• As exposure time increases, pixels saturate at a lower flux, which will decrease the dynamic range;
• Cosmic rays become harder to filter out as there are less images to provide good statistics;
• The flux range within which ⁣P⁣C⁣ processing has an advantage over AM is smaller, forcing the user to process data in AM and be impacted by the excess noise factor (E⁣N⁣F⁣).

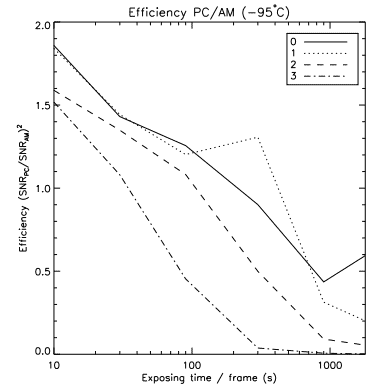

Figure 5. Efficiency comparison between ⁣P⁣C⁣ and AM processing of a camera operated at −95C for a total of 3 hours of integration with respect to integration time per frame, and the mean pixel signal level.

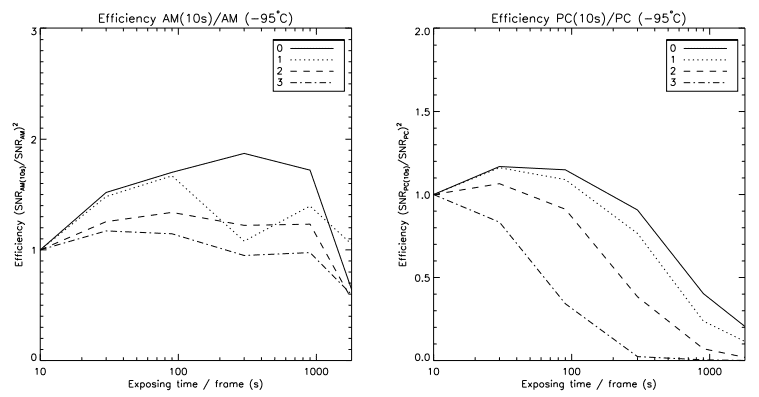

Figure 6. Efficiency comparison of a camera operated at −95C for a total of 3 hours of integration as a function of the integration time per frame and mean pixel signal level. . Left: For AM-processed data. Right: For ⁣P⁣C⁣-processed data.

4. CONCLUSION

In this paper, we have demonstrated the distinct advantages of E⁣M⁣C⁣C⁣D⁣ imaging for astronomical applications requiring long exposures. By eliminating readout noise, the E⁣M⁣C⁣C⁣D⁣ prevents weak signals from being wiped out by the readout process, and provides dark-noise limited images in a matter of seconds rather than hours. Therefore, the integration time for a single frame can be significantly reduced without losing information; by comparison, a conventional C⁣C⁣D⁣ with comparable quantum efficiency will have to increase its total exposure time to obtain an adequate S⁣N⁣R⁣ in a s⁣h⁣o⁣t⁣ ⁣n⁣o⁣i⁣s⁣e⁣ limited regime. In order to realize the highest S⁣N⁣R⁣, photon-counting processing is mandatory as it gets rid of the E⁣M⁣C⁣C⁣D⁣’s inherent E⁣N⁣F⁣. In this scheme, using several short exposures (≤100 s) for several hours total integration time provides better dynamic range. Moreover, the number of images gathered eases cosmic-ray filtering greatly, an important aspect for space applications.

Furthermore, results show that there is little impact on the S⁣N⁣R⁣ while resorting to exposures much shorter than 100 s. Figure 6 made clear that even for 10 s exposures, the impact on the total integration time required to reach the same S⁣N⁣R⁣ is about 20–30% for flux as low as 2 photons/pixel/hour, whilst this kind of acquisition will greatly increase the dynamic range of the data. As an added benefit, shorter exposures could relax the required pointing accuracy of a spacecraft as its stability would only need to be controlled on a few tens of seconds timescale rather than several minutes.

At last, it must be noted that all of our data were collected in inverted mode operation (I⁣M⁣O⁣), which produces the lowest dark current6 at the price of an increased C⁣I⁣C⁣ level.7 The precise control of clocking parameters achieved with Nüvü Camēras’ version 3 controller allows to minimize the C⁣I⁣C⁣ to negligible levels even in I⁣M⁣O⁣ mode resulting in highest possible S⁣N⁣R⁣ that is the key to successful data acquisition with an E⁣M⁣C⁣C⁣D⁣ low-light imager operating with long integration times.

REFERENCES

[1] Kuchner, M. J. and Spergel, D. N., “Terrestrial Planet Finding with a Visible Light Coronagraph,” in [Scientific Frontiers in Research on Extrasolar Planets], Deming, D. and Seager, S., eds., Astronomical Society of the Pacific Conference Series 294, 603–610 (2003).
[2] Levine, M. et al., “Overview of Technologies for Direct Optical Imaging of Exoplanets,” in [astro2010: The Astronomy and Astrophysics Decadal Survey], Astronomy 2010, 37 (2009).
[3] Lyon, R. G., Clampin, M., Melnick, G., Tolls, V., Woodruff, R., and Vasudevan, G., “Extrasolar Planetary Imaging Coronagraph (EPIC): visible nulling cornagraph testbed results,” in [Society of Photo-Optical Instrumentation Engineers (SPIE) Conference Series], Society of Photo-Optical Instrumentation Engineers (SPIE) Conference Series 7010 (Aug. 2008).
[4] Shaklan, S., Levine, M., Foote, M., Rodgers, M., Underhill, M., Marchen, L., and Klein, D., “The afta coronagraph instrument,” (2013).
[5] Daigle, O., Quirion, P.-O., and Lessard, S., “The darkest E⁣M⁣C⁣C⁣D⁣ ever,” in [Society of Photo-Optical Instrumentation Engineers (SPIE) Conference Series], Society of Photo-Optical Instrumentation Engineers (SPIE) Conference Series 7742 (July 2010).
[6] Daigle, O., Djazovski, O., Laurin, D., Doyon, R., and Artigau, E., “Characterization results of E⁣M⁣C⁣C⁣D⁣s⁣ for extreme ´ low-light imaging,” in [Society of Photo-Optical Instrumentation Engineers (SPIE) Conference Series], Society of Photo-Optical Instrumentation Engineers (SPIE) Conference Series 8453 (July 2012).
[7] “Low-light technical note 4 dark signal and clock-induced charge in l3vision ccd sensors,” tech. rep., E2V Technologies, http://www.e2v.com/shared/content/resources/File/documents/ imaging-space-and-scientific-sensors/Papers/low_light_tn4.pdf (June 2004).
