Time-Delay Integration EMCCD

Olivier Daigle1, Jérémy Turcotte1, Yoann Gosselin1, Alex Saint-Amant Lamy1

Author affiliations [+]

1. Nüvü Caméras, 355 Peel St, suite 603, Montreal, QC, H3C 2G9, Canada.


Scientific E⁣M⁣C⁣C⁣D⁣ cameras are the detector of choice for extreme low-light conditions. With p⁣h⁣o⁣t⁣o⁣n⁣ ⁣c⁣o⁣u⁣n⁣t⁣i⁣n⁣g⁣ capabilities, sub-electron readout noise and low d⁣a⁣r⁣k⁣ ⁣c⁣u⁣r⁣r⁣e⁣n⁣t⁣, E⁣M⁣C⁣C⁣D⁣s⁣ can detect very faint signals. Traditionally, E⁣M⁣C⁣C⁣D⁣ are operated in frame-transfer mode where the image is integrated in the light-sensitive region of the sensor and then quickly transferred to a storage array before being read out. Time-Delay Integration (T⁣D⁣I⁣) is a specialized readout mode optimized to image fast moving objects while preserving light sensitivity. By shifting the p⁣h⁣o⁣t⁣o⁣e⁣l⁣e⁣c⁣t⁣r⁣o⁣n⁣s⁣ simultaneously to the movement of the object, T⁣D⁣I⁣ effectively increases the integration time available to collect light. The newest version of Nüvü Caméras’ C⁣C⁣D⁣ Controller for Counting Photons (C⁣C⁣C⁣P⁣) will allow operating E⁣M⁣C⁣C⁣D⁣ detectors using T⁣D⁣I⁣ readout mode with either internal or external trigger sources at more than 100k lines per second. The combination of T⁣D⁣I⁣ and E⁣M⁣C⁣C⁣D⁣ technologies represents a new leap for extreme low-light imaging in fast moving conditions opening E⁣M⁣C⁣C⁣D⁣ to a range of new applications.


Electron Multiplying Charge Coupled Devices (E⁣M⁣C⁣C⁣D⁣s⁣) are extremely sensitive devices capable of detecting a single photon in the visible spectrum. E⁣M⁣C⁣C⁣D⁣ cameras are based on a similar architecture to frame-transfer C⁣C⁣D⁣s⁣. An imaging area comprised of individual pixels are used to collect incoming light and trap resulting p⁣h⁣o⁣t⁣o⁣e⁣l⁣e⁣c⁣t⁣r⁣o⁣n⁣s⁣ in the silicon substrate of the detector. One by one, each pixel line is shifted down and ultimately transferred to the horizontal register. A second high voltage serial multiplication register is then used to multiply the electrons from each pixel and propel the weak signals over the readout noise floor which allows for single photon sensitivity [1].


When trying to image fast moving objects, it is often a challenge to capture an image with a sufficient signal level while maintaining minimal motion blur or image smear. To alleviate this problem, Time Delay Integration (T⁣D⁣I⁣) Charge Coupled Devices (C⁣C⁣D⁣) were developed in the 1970’s to allow continuous exposure of the object as it moves under the field of view of the camera [2].

Time-Delay Integration is a readout mode based on the concept of the accumulation of cumulative exposures of the same object as it is moving linearly under the detector. The goal is to synchronize the transfer of the charges from one line to the next with the same speed as the object moving under the camera. This allows to detect very-weak signals with a superior S⁣N⁣R⁣ compared to full-frame or frame-transfer cameras. An example of T⁣D⁣I⁣ readout is shown in figure 1.

T⁣D⁣I⁣ cameras produce a continuous stream of lines rather than 2D images. The number of T⁣D⁣I⁣ stages corresponds to the number of lines of the light-sensitive region of the detector and is also representative of the number of cumulative exposures each part of an object will accumulate. Compared to frame-transfer detectors, the operation of E⁣M⁣C⁣C⁣D⁣ in T⁣D⁣I⁣ mode doesn’t add additional noise to the image since the charge transfer is done similarly. It is now possible for the first to use the T⁣D⁣I⁣ mode of operation on E⁣M⁣C⁣C⁣D⁣ cameras. This allows to benefit from the sensitivity of the E⁣M⁣C⁣C⁣D⁣ detector and the high-speed imaging capabilities of T⁣D⁣I⁣.

It is now available on the three commercial E⁣M⁣C⁣C⁣D⁣ chips from e2v-Teledyne, the CCD60 (128×128), CCD97 (512×112) and CCD201-20 (1024×1024). The achievable line rate is dependant on the size of the detectors and can reach up to 140,000 lines per second on the smallest detector.

Multiple applications can benefit from the T⁣D⁣I⁣ readout mode. These applications range from industrial visual inspection, space or ground based earth observations, flow cytometry imaging, histology slide imaging and much more.

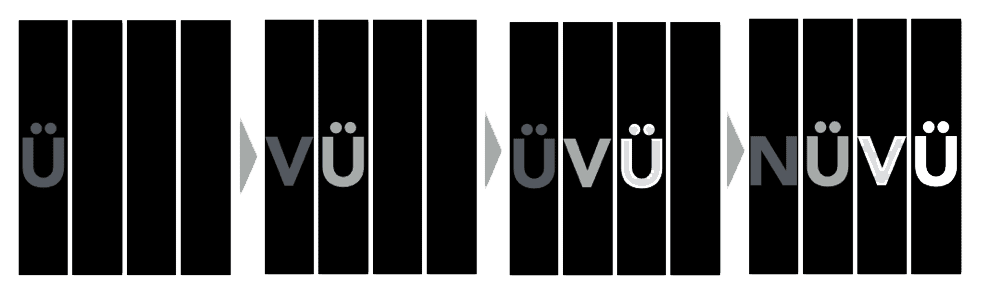

TDICCD reading of the word Nuvu

Fig. 1. Example of imaging the word NÜVÜ using Time-Delay Integration readout mode. The intensitiy of the signal is increased as the word moves across the detector.




[1] O. Daigle et al., “Extreme Faint Flux Imaging with an E⁣M⁣C⁣C⁣D⁣”, Publications of the Astronomical Society of the Pacific, vol. 121, no. 882, pp. 866-884, 2009. Available: 10.1086/605449.
[2] Q. Huang and X. Li, “Application of TDICCD on real-time Earth reconnaissance satellite”, Automated Optical Inspection for Industry: Theory, Technology, and Applications II, 1998. Available: 10.1117/12.318363
