With industry-leading low-light SNR

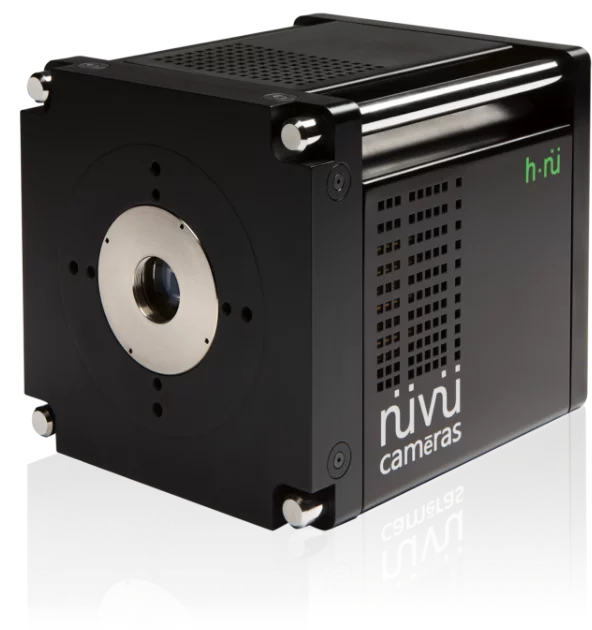

Made for applications requiring the ultimate sensitivity in Space & Defense, Life Sciences, Physics, Industry and many other fields, the HNü 512 camera provides exactly what is to be expected from a high-end EMCCD camera: virtually no noise. This ultimate sensitivity enables highly efficient low-flux imaging, hence faster acquisitions and superior image quality.

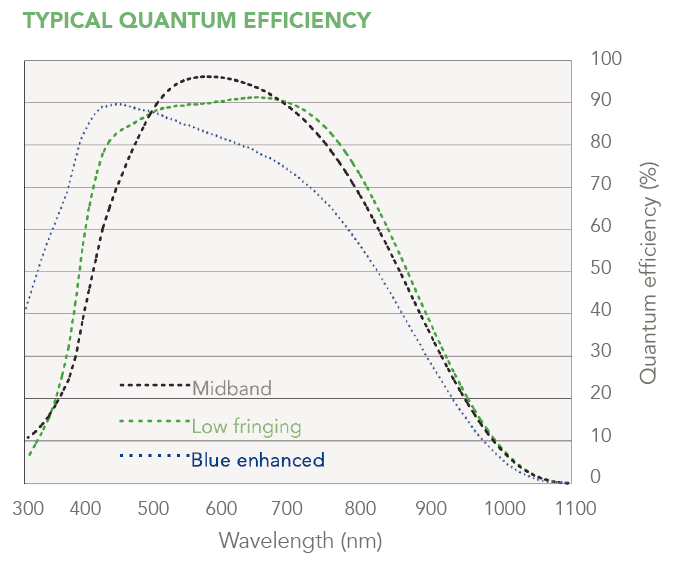

The HNü 512 integrates the high QE (up to 95%) typical to high-end EMCCD detectors. Coupled with Nüvü’s patented electronics for the lowest background noise and the highest EM gain, this HNü 512 camera is ideal for applications requiring the utmost sensitivity in ultra-low light conditions.
The HNü 512 EMCCD camera is also available with a Low fringing detector, UV Lumogen coating or a blue enhanced sensor for higher quantum efficiency in the blue and UV spectral region.

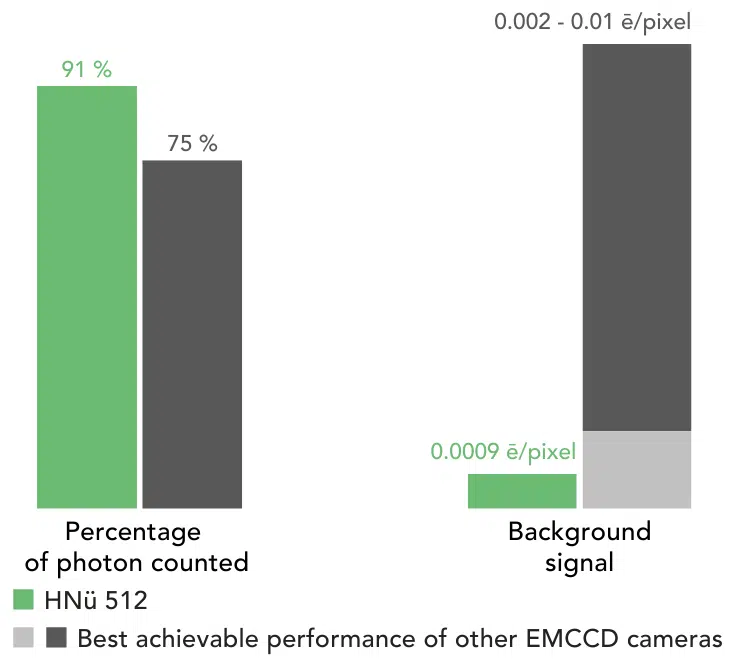

Thanks to Nüvü’s CCD Controller for Counting Photons, less clock-induced charges (CIC) are generated, the dominant source of noise in low light EMCCD imaging, providing at least 10x less noise than other cameras using the same detector whilst counting at least 15% more genuine photons.
Further customize the camera to your requirements for improved performances in your measurement contexts and increased versatility. A variety of options available.

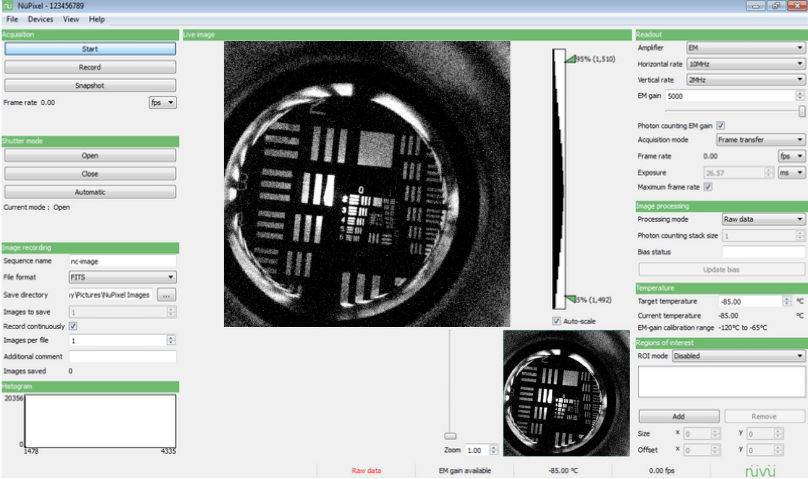

The user-friendly HNü camera provides many advantages to efficiently bridge the gaps between purchase, setup and discoveries.
The HNü camera is a compact and easy-to-use device with a Windows or Linux operating system. To allow quick and easy integration into any system, all standard HNü cameras come with a C-mount optical interface, imperial and metric mechanical holes on the faceplate, and standard holding posts on the sides of the camera. For fast and reliable image data transmission, the HNü camera communication interface are either Gigabit Ethernet or Camera Link. A built-in shutter enhances detector longevity, allows dark frame acquisitions, and is remotely controllable with our software tools for all application requirements.
In addition to an intuitive user manual for the easy installation and use of our products, Nüvü Camēras offers international on-site training as well as complete consulting services. Our team’s passion is the development of the ultra low-light imaging field; as such, we provide a variety of services to efficiently minimize the delay between purchase and discoveries.
Speak with our teamNüvü Camēras is a Canadian company specialized in designing and manufacturing novel low light imaging cameras for fields where the drive for cutting edge instrumentation propels innovation. We improve imaging performance for a number of fields including biomedical research, astronomy, photonics and more. As such, our cameras benefit from extended warranty policies. Basic product warranty includes 2-year on all parts and labor (subject to the terms and conditions expressed in the respective products’ user manuals).
Extended warranty options also available.
The darkest EMCCD cameras are manufactured by Nüvü Camēras. The secret? The CCD Controller for Counting Photons (CCCP), an innovative technology that virtually suppresses clock-induced charges (CIC), and a cooling Peltier unit integrated into an ingenious packaging. The thermoelectrically cooled HNü camera operates between -60 and -90°C with outstanding precision to optimize CIC and dark current to their ground level. The images below illustrate the accumulation of dark current when the shutter is closed. The darker the image, the less noise is present.

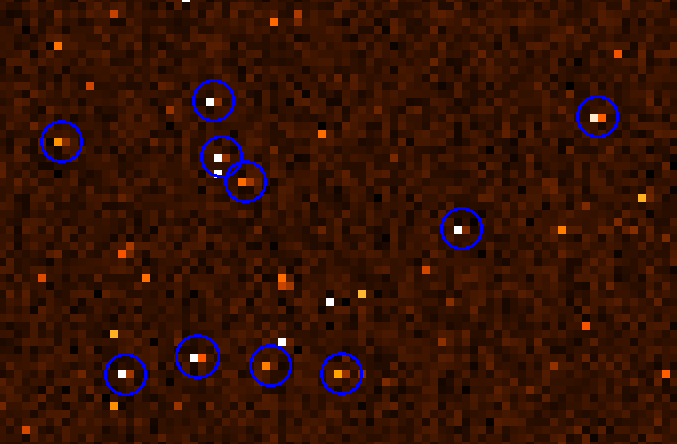

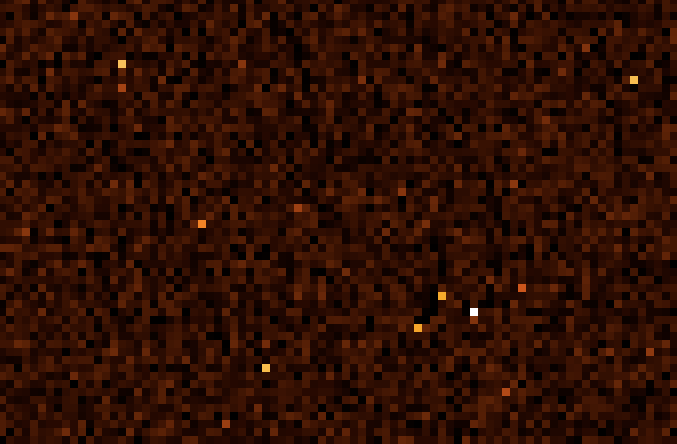

At high readout speeds, the electron transfer from one potential well to the next may be incomplete, leaving a few charges behind. Consequently, the leftover electrons artificially increase the brightness of certain pixels, thereby diminishing the overall image quality with the addition of arbitrary blurry spots. However, Nüvü Camēras’ CCCP preserves charge transfer efficiency (CTE), even at low operating temperature and increased EM gain, while decreasing CIC, yielding highly superior image quality.
As stated in its name, Nüvü Camēras’ proprietary CCD Controller for Counting Photons was purposely designed for photon-counting imaging. As such, no noise-filtering algorithms are used. The amount of noise generated is simply lower, eliminating the risk of removing genuine photoelectrons.
Resorting to arbitrary clocks rather than regular square clocks to shift the electrons through the EMCCD, the CCCP clamps down the generation of clock-induced charges and significantly reduced the detector’s total background noise. Consequently, the EMCCD ability to discriminate single-photon events is considerably increased, and the camera can effectively operate in photon-counting mode as long as the background noise is low.
In extreme cases where the expected intensity is about a single photon per pixel per second or even less, the photon counting (PC) mode is the ideal solution to obtain high-quality images. By eliminating the excess noise factor (ENF) and using a statistically significant threshold, pixels are individually analyzed to determine whether or not they truly detected a photon despite various noise sources.

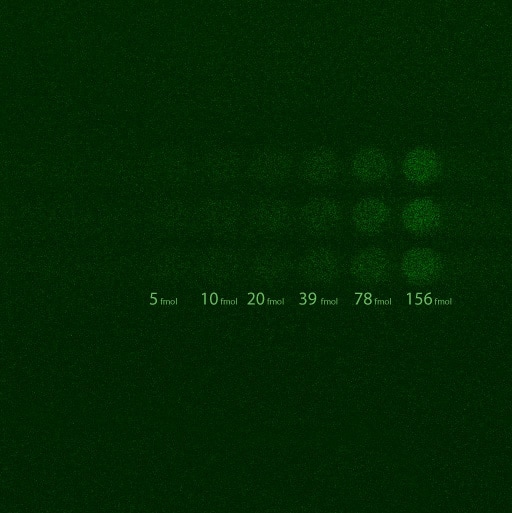

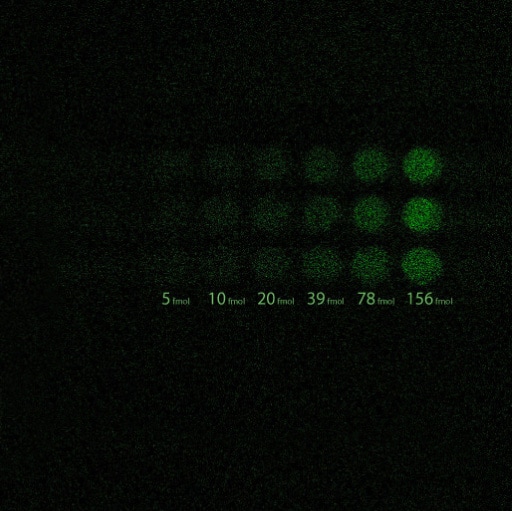

Displayed below are images of extremely dim light sources — low concentration bioluminescent samples — and illustrate the power of photon-counting imaging in such conditions. All figures are courtesy of the Université de Sherbrooke Hospital Centre.
Any questions about EMCCD or low light imaging? Nüvü Camēras experts can provide advices on your low light imaging options.
