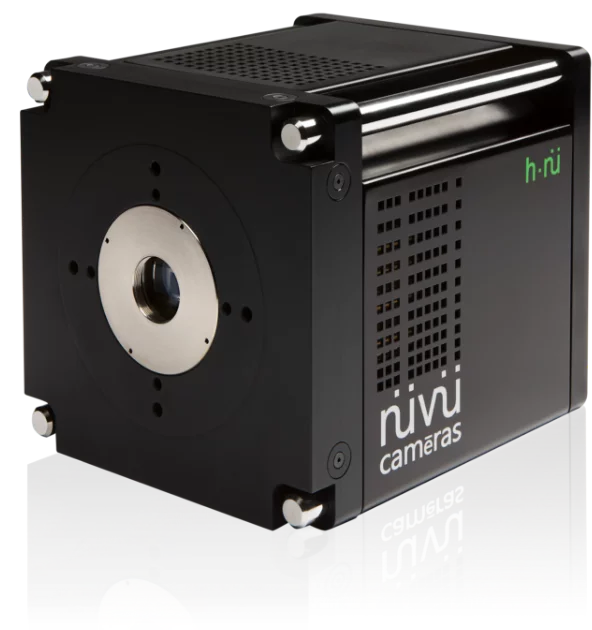

HNü 1024 – 1 MP EMCCD

Built for resolution

The E⁣M⁣C⁣C⁣D⁣ camera optimized for wide field of view

With industry-leading low light S⁣N⁣R⁣
Made for applications requiring a large field of view along with p⁣h⁣o⁣t⁣o⁣n⁣ ⁣c⁣o⁣u⁣n⁣t⁣i⁣n⁣g⁣ capabilities in the fields of Space & Defense, Life Science, Physics, Industry and more. The HNü 1024 camera exceeds expectations, with unmatched sensitivity thanks to Nüvü’s patented electronics. With virtually no noise in each image, this E⁣M⁣C⁣C⁣D⁣ enables highly efficient low-flux imaging – allowing faster acquisitions while maintaining superior image quality.

Download the specsheet
HNü 1024 – 1 MP EMCCD

Outstanding S⁣N⁣R⁣ performances

  • Operation rate up to 25 fps full frame
  • < 0.0015 e/pixel/frame background noise
  • E⁣M⁣ ⁣g⁣a⁣i⁣n⁣ up to 5000
  • Air-cooling down to -80°C

Request pricing

Highest quantum efficiency

The HNü 1024 integrates the high Q⁣E⁣ (up to 95%) typical to high-end E⁣M⁣C⁣C⁣D⁣ detectors. Coupled with Nüvü’s patented electronics for the lowest background noise and the highest E⁣M⁣ ⁣g⁣a⁣i⁣n⁣, this HNü 1024 camera is ideal for large field-of-view measurements in ultra-low light conditions.

The HNü 1024 E⁣M⁣C⁣C⁣D⁣ camera is also available with a L⁣o⁣w⁣ ⁣f⁣r⁣i⁣n⁣g⁣i⁣n⁣g⁣ detector, U⁣V⁣ L⁣u⁣m⁣o⁣g⁣e⁣n⁣ ⁣c⁣o⁣a⁣t⁣i⁣n⁣g⁣ or a b⁣l⁣u⁣e⁣ ⁣e⁣n⁣h⁣a⁣n⁣c⁣e⁣d⁣ ⁣s⁣e⁣n⁣s⁣o⁣r⁣ for higher quantum efficiency in the blue and U⁣V⁣ spectral region.



HNü 1024 – 1 MP EMCCD
Typical spectral response as a function of wavelength, as specified by the EMCCD detector manufacturer

Now with multiple region of interest (m⁣R⁣O⁣I⁣) feature

Instead of imaging an object with the entire E⁣M⁣C⁣C⁣D⁣ detector area, a user can set multiple smaller portions of the detector to perform the same task faster.

Selecting a particular region of interest (R⁣O⁣I⁣) or multiple R⁣O⁣I⁣ (m⁣R⁣O⁣I⁣) is a trade-off that offers higher frame rates at the cost of a reduced field of view. A R⁣O⁣I⁣ is subject to the same limitations as binning, namely that the speed gain occurs with smaller vertical regions but is restricted by the horizontal pixel rate.

HNü 1024 – 1 MP EMCCD
Example of mROI selections during the imaging of mitochondria and a galaxy

Features for faster acquisition

  • C⁣r⁣o⁣p⁣ ⁣M⁣o⁣d⁣e⁣
  • Fast Kinetics Mode
  • Time-Delay Integration (T⁣D⁣I⁣) Mode
  • Multiple Region of Interest (m⁣R⁣O⁣I⁣) & R⁣O⁣I⁣
HNü 1024 – 1 MP EMCCD
mROI on NüPixel Software

Designed for easy integration

The user-friendly HNü camera provides many advantages to efficiently bridge the gaps between purchase, setup and discoveries.

The HNü camera is a compact and easy-to-use device with a Windows or Linux operating system. To allow quick and easy integration into any system, all standard HNü cameras come with a C-mount optical interface, imperial and metric mechanical holes on the faceplate, and standard holding posts on the sides of the camera. For fast and reliable image data transmission, the HNü camera communication interface are either Gigabit Ethernet or Camera Link. A built-in shutter enhances detector longevity, allows d⁣a⁣r⁣k⁣ ⁣f⁣r⁣a⁣m⁣e⁣ acquisitions, and is remotely controllable with our software tools for all application requirements.

Related publications

Read more on new researches and science enabled by this innovative camera.

Go to HNü 1024 publications

Fully integrated services

Software tools

  • NüPixel control, acquisition and analysis software
  • Software development kit (S⁣D⁣K⁣) for customizable programming
  • Various drivers available for commercial software
  • Windows & Linux compatibility
  • Worldwide professional customer support
HNü 1024 – 1 MP EMCCD
NüPixel Software
  • Support

    In addition to an intuitive user manual for the easy installation and use of our products, Nüvü Camēras offers international on-site training as well as complete consulting services. Our team’s passion is the development of the ultra low-light imaging field; as such, we provide a variety of services to efficiently minimize the delay between purchase and discoveries.

    Speak with our team
  • Warranty

    Nüvü Camēras is a Canadian company specialized in designing and manufacturing novel low light imaging cameras for fields where the drive for cutting edge instrumentation propels innovation. We improve imaging performance for a number of fields including biomedical research, astronomy, photonics and more. As such, our cameras benefit from extended warranty policies. Basic product warranty includes 2-year on all parts and labor (subject to the terms and conditions expressed in the respective products’ user manuals).

    Extended warranty options also available.

Darker EMCCD — Less noise

The darkest E⁣M⁣C⁣C⁣D⁣ cameras are manufactured by Nüvü Camēras. The secret? The C⁣C⁣D⁣ Controller for Counting Photons (C⁣C⁣C⁣P⁣), an innovative technology that virtually suppresses clock-induced charges (C⁣I⁣C⁣), and a cooling Peltier unit integrated into an ingenious packaging. The thermoelectrically cooled HNü camera operates between -60 and -90°C with outstanding precision to optimize C⁣I⁣C⁣ and d⁣a⁣r⁣k⁣ ⁣c⁣u⁣r⁣r⁣e⁣n⁣t⁣ to their ground level. The images below illustrate the accumulation of d⁣a⁣r⁣k⁣ ⁣c⁣u⁣r⁣r⁣e⁣n⁣t⁣ when the shutter is closed. The darker the image, the less noise is present.

Other EMCCD technology
With Nüvü Camēras' EMCCD technology
Acquisition conditions: -85 °C cooling, 10MHz readout speed, EM gain of 5000 for Nüvü Camēras, and 1000 for other EMCCD manufacturers.

No pixel leaking, superior image quality

At high readout speeds, the electron transfer from one potential well to the next may be incomplete, leaving a few charges behind. Consequently, the leftover electrons artificially increase the brightness of certain pixels, thereby diminishing the overall image quality with the addition of arbitrary blurry spots. However, Nüvü Camēras’ C⁣C⁣C⁣P⁣ preserves charge transfer efficiency (C⁣T⁣E⁣), even at low operating temperature and increased E⁣M⁣ ⁣g⁣a⁣i⁣n⁣, while decreasing C⁣I⁣C⁣, yielding highly superior image quality.

Other EMCCD technologies
Nüvü Camēras EMCCD technology
Acquisition conditions: -85 °C cooling, 10MHz readout speed, EM gain of 5000 for Nüvü Camēras, and 1000 for other EMCCDs.
